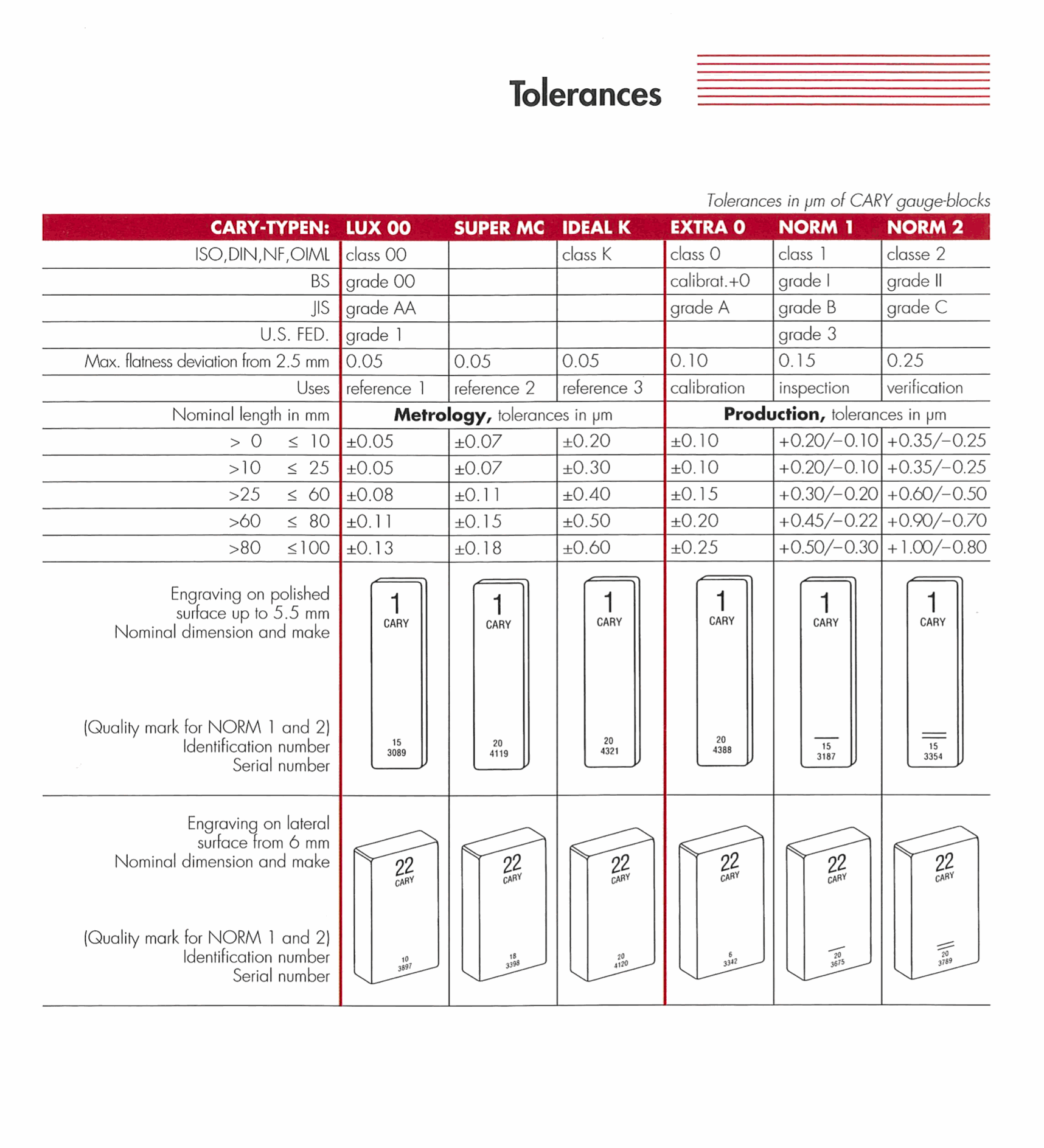

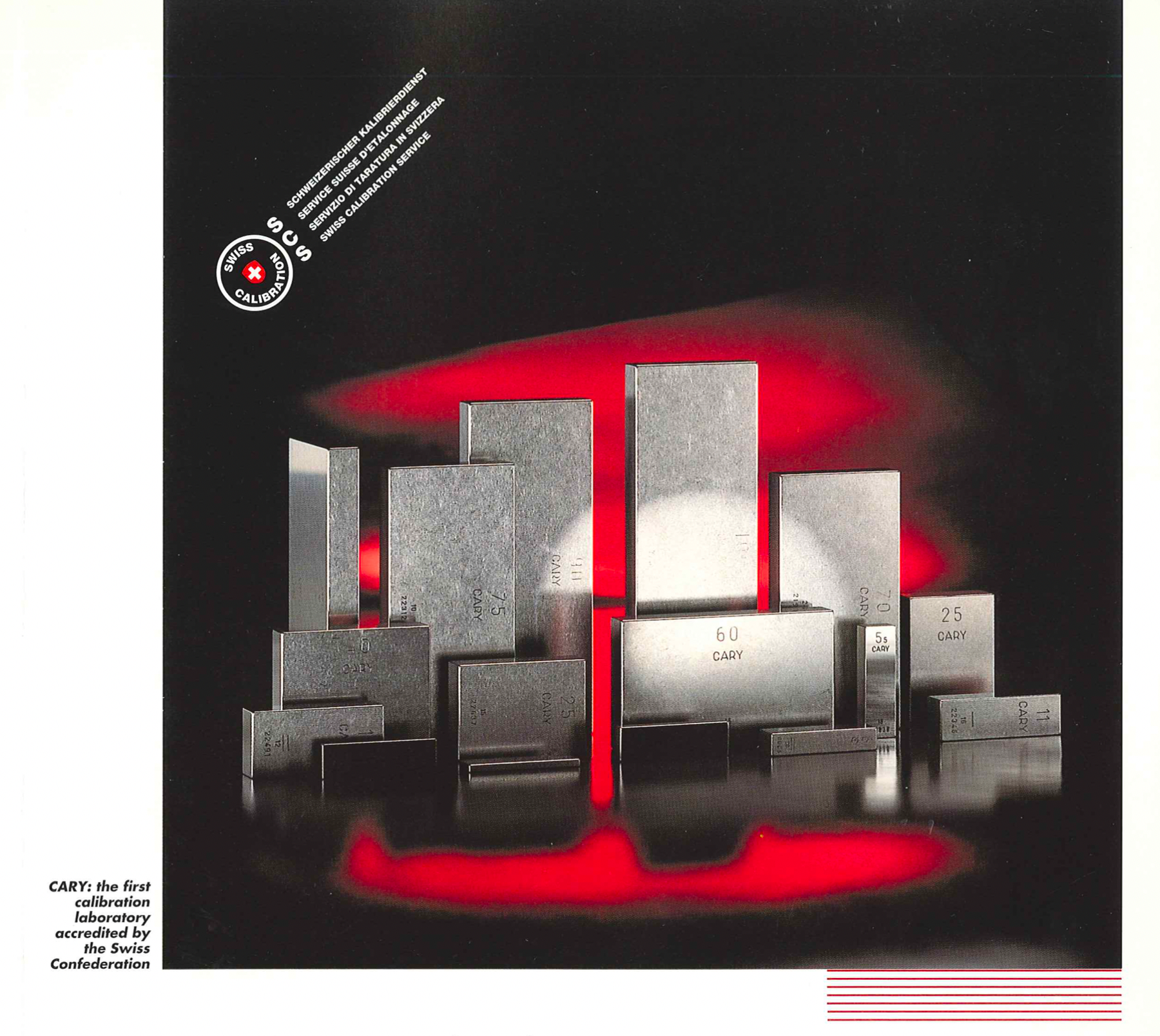

CARY slip gauges: the reference
00 - grade1 most exact flatness and accuracy
K - equivalent to grade 00 with AS-1 accuracy
0 - generally equivalent to grade 2
AS-1 : generally equivalent to grade 3
AS-2 : generally less accurate to grade 3
The ANSI/ASME standard follows a similar philosophy as set forth in ISO EN 3650.
To measure the value of a micron,
the benchmark for ultra-precision...
- Very high quality slipe gauges gurantee perfect mastery of merasured values and a total compliance with tolerances.
- Perfect flatness and parallelism over the entire measuring surfaces
- Exceptional wringability between the measuring surfaces due to our exclusive finishing technique
- Excellent long-term dimensional stability with low linear expansion co-efficiency thanks to the choice of quality materials (special steels and tungsten carbide) and a sophisticated heat treatment process.
