Cutting-edge products with Swiss technology
CARY boasts an extensive range of gauges, rings and measuring devices.
High-precision instruments in order to obtain the most exact results in rigorous manufacturing processes.

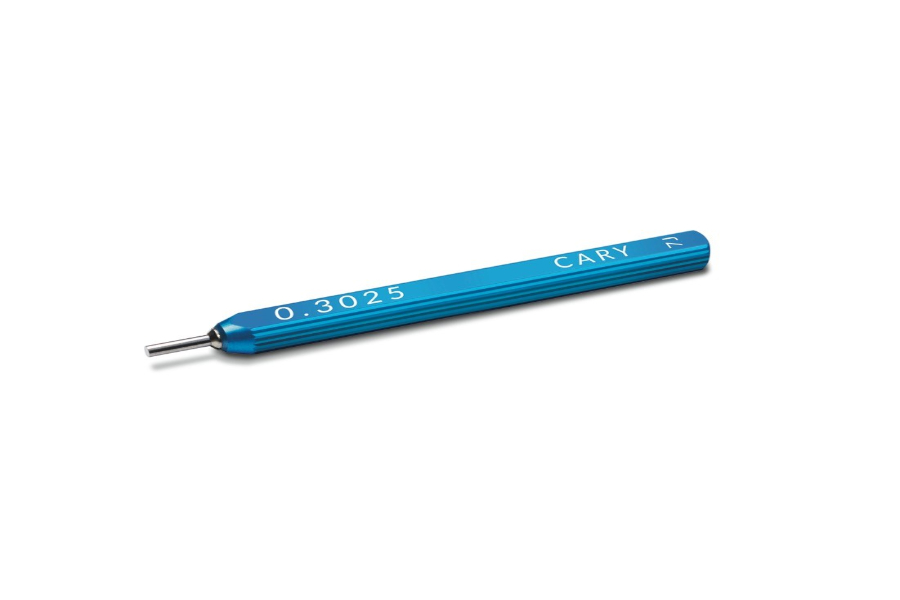

SIMPLE PIN GAUGE
Cary produces smooth steel plug gauges from 0.05 to 10mm available in quarter-micron increments.
In hard metal from 0.3 to 6mm every half micron. Accuracy up to +/-0.2 micron in ETALON. Custom fabrication up to 60mm. Maintenance and certification of complete sets, replacement, with CARY everything becomes possible.
E-SHOP VALID ONLY IN SWITZERLAND

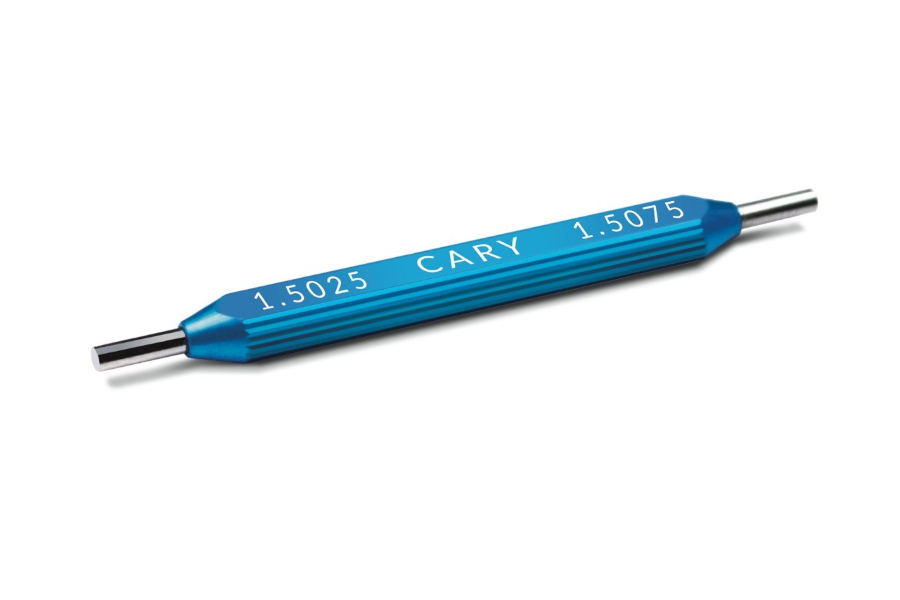

DOUBLE PIN GAUGE
Cary manufacture Pin Gauges in Steel from 0.05 to 10mm available every quarter of microns
Also in Hard Metal from 0.3 to 6mm available every quarter of microns. All can be delivered within 24 hours in express. All with a precision up to +/-0.15 micron. On demand, we can also manufacture specific size up to 60mm. Service, maintenance and certification of complete sets, replacement: with CARY everything becomes possible.

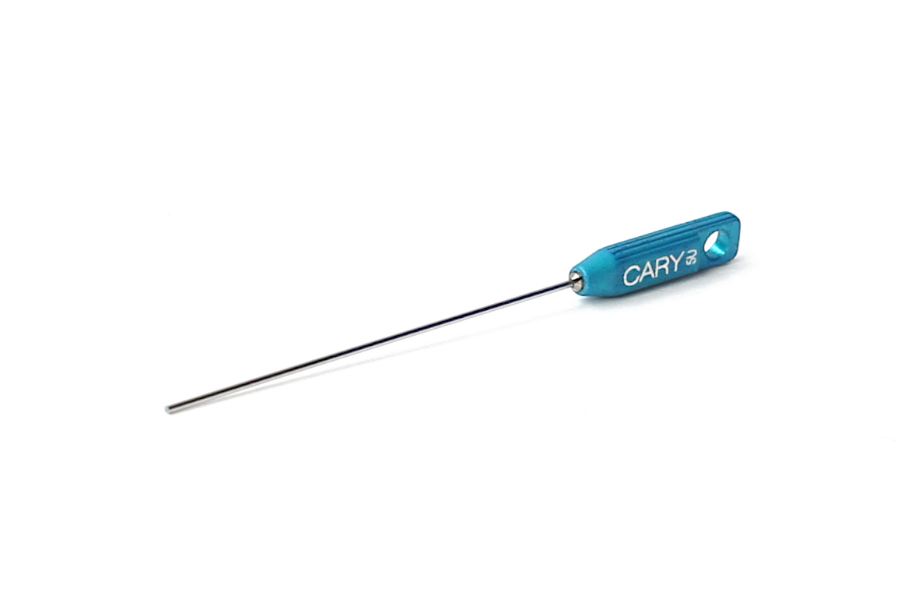

LONG GAUGE
Cary produces long pin gauges from 0.1mm to 10mm available every half of microns. Working length of 20mm to 40 mm depending on the diameter and a precision of up to 0.3 micron. Specialties on demand. Maintenance and certification of complete sets, specifications, replacement with CARY everything becomes possible.

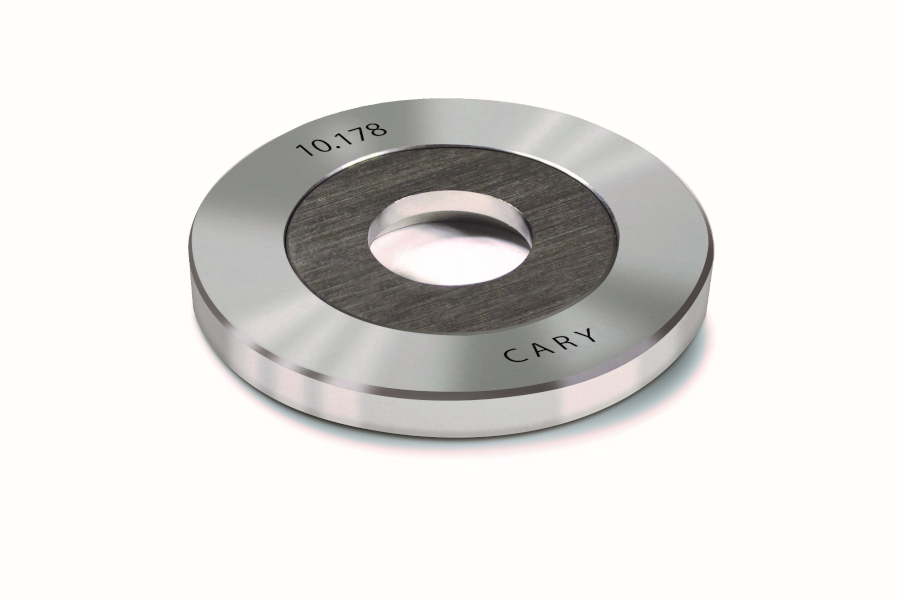

RING GAUGES
Cary manufacture Ring Gauges in Steel from 0.151 to 30mm and in HartMetal from 0.06 to 30mm every half of micron. On demand, we can also manufacture specific size up to 60mm Service, maintenance, certification of complete sets and replacement: with CARY everything becomes possible.

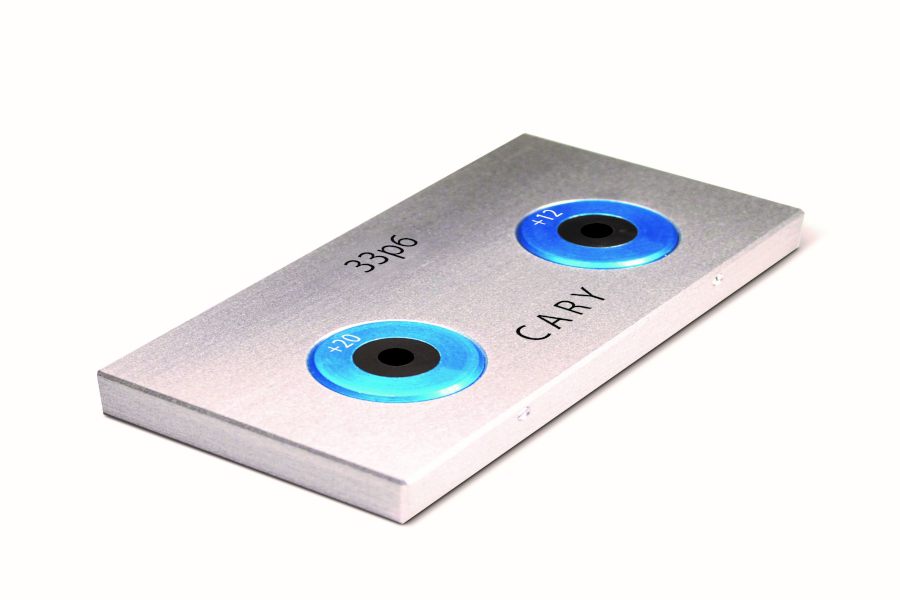

DOUBLE RING GAUGES
Cary manufacture Ring Gauges in Steel from 0.151 to 30mm and in HartMetal from 0.06 to 30mm every half of micron. On demand, we can also manufacture specific size up to 60mm Service, maintenance, certification of complete sets and replacement: with CARY everything becomes possible.

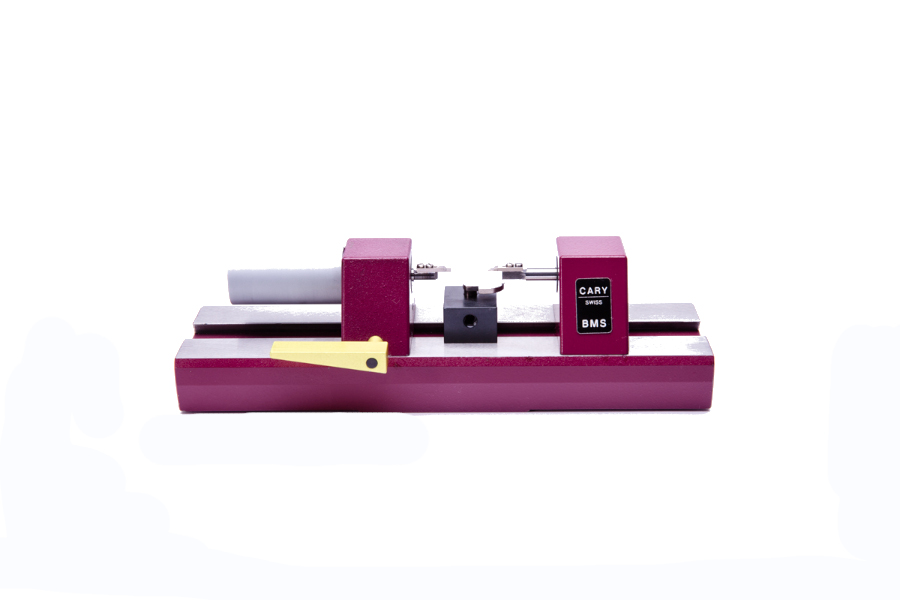

MEASURING BENCH
Manufacture and sale of measuring benche. The BMH (with a micrometer knob) , the bench with all options. The BMF (fixed head), the bench with excellent value qualty price. Measuring range of 10mm. A hole of 8mm gives you the opportunity to put any electronic probing system.

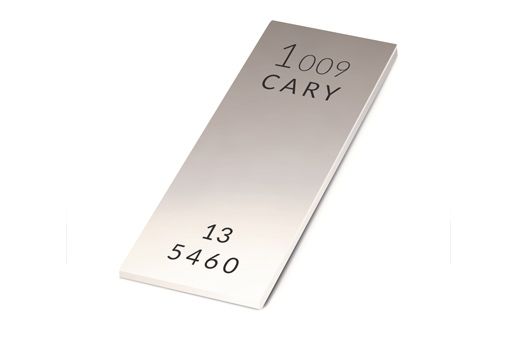

SLIP GAUGES
Cary since 1940 is known to master the production of gages block (also known as Johansson gauges, slip gauges, or Jo blocks):
00 - grade1 most exact flatness and accuracy
K - equivalent to grade 00 with AS-1 accuracy
0 - generally equivalent to grade 2
AS-1 : generally equivalent to grade 3
AS-2 : generally less accurate to grade 3
The ANSI/ASME standard follows a similar philosophy as set forth in ISO EN 3650.
METROLOGY SERVICE
CARY was the first laboratory in Switzerland to obtain a SCS certification with the accreditation number 1. Thanks to these many years of experience in high precision metrology we decided to share our expertise with you by opening a metrology consulting office. If you have measurement issues, clamping, repeatability, automation of measurement process: we are at your disposal.
